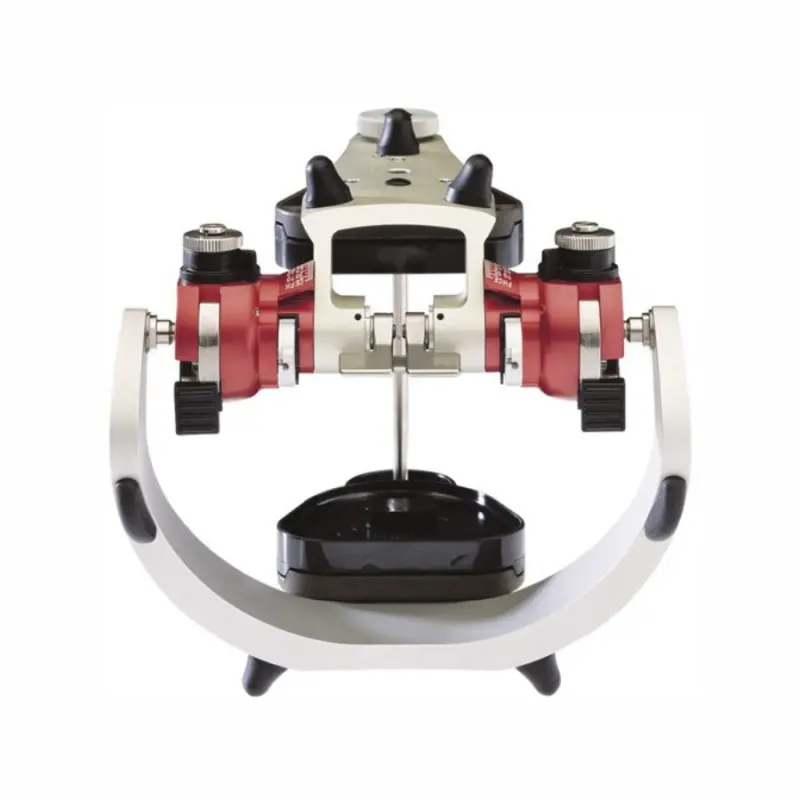

PROTARevo7 KaVo Articulator

Sold out

Add to wishlist

Request form

KaVo PROTARevo articulators, with their innovative character and optimised functionality, set a new standard in the articulator market.


1. Accuracy

- the success of a dental prosthesis depends on the precision with which it is made

- cost effectiveness

- the possibility of making occlusal corrections more accurately, thanks to the adjustment scale

2. Presentation

- perfect presentation of the prosthetic work in front of the patient

3. Handling

- superior manoeuvrability: it is light (up to 25% lighter than other articulators), has smooth surfaces, and is easy to adjust by hand, without tools

- elegant yet practical design, offering the possibility to work in several positions, ideal for fitting full prostheses

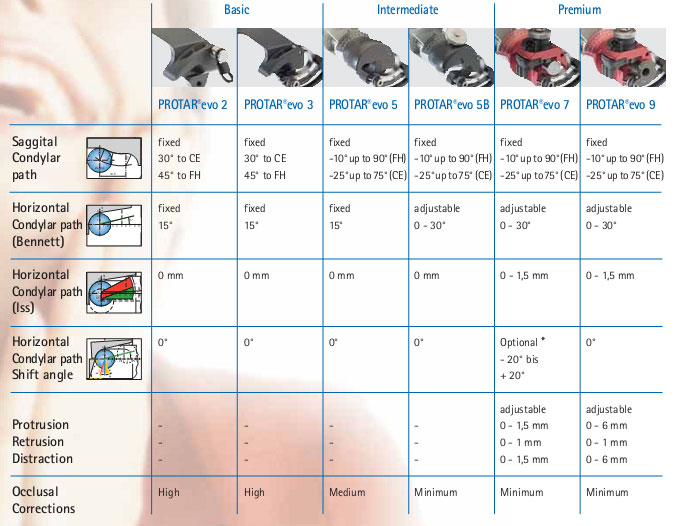

PROTARevo7 characteristics:


1. Sagittal tilt of the condylar side:-10° - 90° (at FH) -25° - 75° (at CE)


2. Bennet Qngle: adjustable: 0-30°


3. Shideshift (Immediate Sideshift) 0-1.5 mm


4. Angle of translation - in propulsion -  optional -20° up to +20°

5.  Protrusion / Retrosion / Distraction  adjustable 0-1.5mm / 0-1mm / 0-1.5mm

6. Minimal occlusal corrections
