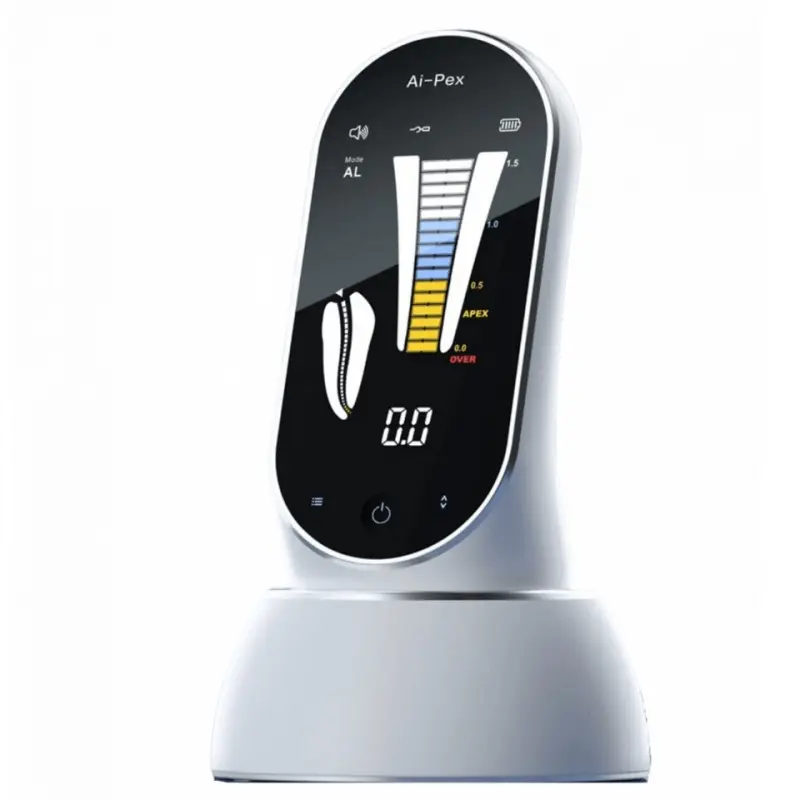

Ai-Pex Woodpecker apex locator

The product is delivered on demand.

Advantages:

Allows easier treatment

Can be connected to an endomotor

Constant current source - pulpal electrical testing

Unique base design

Anti-interference - multiple frequencies, DSP technology

Screen viewing angle can be adjusted

3.8" LCD color touch screen

4-color operating interface

It is recommended to measure starting from 0.0 position and then manually subtract by 0.5-1mm to obtain the final working length

Acoustic recognition - allows easier measurement

When the length indicator bar reaches a number below 1.5, the device beeps at low frequency

The closer the tip is to the apex, the faster the signals

When the tip reaches the apical stop, the device continuously beeps at high frequency

Acoustic level can be adjusted to personal preference

Root canal length measurement

Self-calibration after start-up

Innovative digital circuitry

Central processing chip with DSP processing module

High precision components

Increased information processing speed

Allows control of working length during preparation when connected to an endomotor

Connecting the Ai-Pex to an endomotor allows real-time observation of the position of the needle in the root canal during operation and activates various automatic functions (e.g. Auto-Reverse)

Precise root canal measurement - ideal for various complex root canals

The device can automatically and accurately determine the apex position whether or not there is moisture/blood/residual pulp in the root canal

4 working modes for electric pulp testing - 6.2s to reach maximum pulse intensity at the fastest speed

The 2 different sized probes offer easier operation:

- Large probe, 2.6mm diameter can be used on the tooth with unexposed pulp and placed 1/3 of the tooth height for testing

- small probe, 0.5 mm diameter, can be used on the tooth with unexposed pulp and placed in the crown for testing, or on the tooth with exposed pulp and placed 1/3 of the tooth height for testing

Technical data:

Working time: 5 hours and 20 minutes

Charging time: 3 hours

Battery: 3.7V/2000mAh

Power: 100 - 240V, 50-60Hz, 0.4A

Power consumption: 0.5W

Display: 3.8" LCD, touch screen

Operating conditions:

Ambient temperature: 5 - 40°C

Relative humidity: 30% - 75%

Atmospheric pressure: 70 - 160kPa
