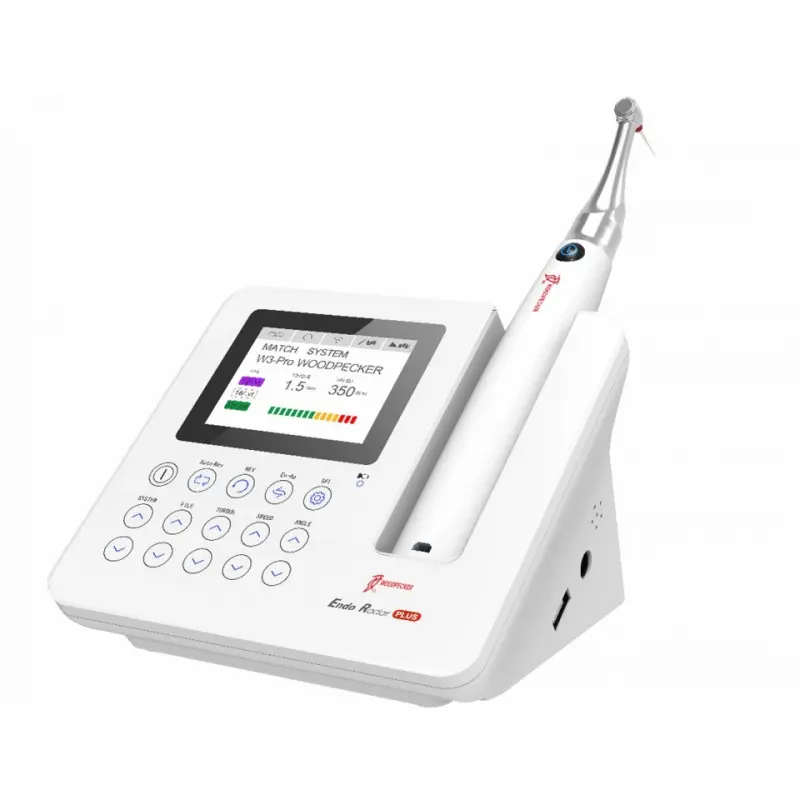

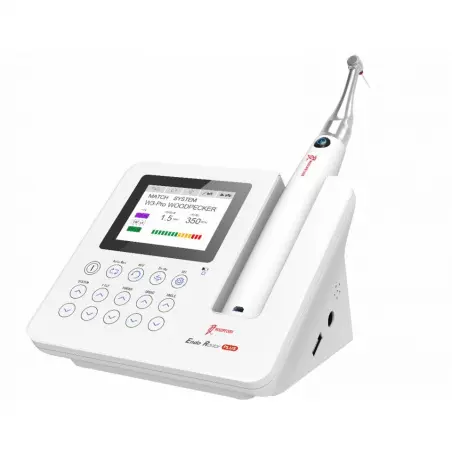

Endo Radar Plus Woodpecker micromotor

Woodpecker's endodontic micromotor with integrated apex locator offers the advantage of being able to use its functions simultaneously or separately, ensuring precision and speed during endodontic treatment.

It can be used in 3 modes:

Endomotor wireless

Apex locator

Endomotor wireless + apex locator - To use the dual function (micromotor + apex locator - simultaneously) it is only necessary to connect the USB cable from the handpiece to the central unit

Wireless endo micromotor

Speed: 100 - 1200 rpm.

Torque: 0.4 - 5 Ncm

Reciprocation function allows fine adjustment of angles: 20 - 400°, from 10 to 10 degrees. This precise control of the rotation angle reduces the risk of tool breakage, ensuring more efficient and safer root canal preparation

Low noise level

Doctor and patient comfort during surgery is also created by the minimized vibration level.

It has a rich internal library with the most known / used brands of NiTi needles.

Memory function for up to 8 needle types.

Thanks to the reading system built into the contra-angle piece, the device benefits from additional precision for apical point determination.

Mini contra-angle piece with 6:1 reduction for more efficient use at low speed and high torque. Allows 360 degree rotation, which ensures easy access in difficult areas.

The mini contra-angle piece is constructed in one piece.

Wireless connection between micromotor and central unit

Enhanced ergonomics

The resolution of the display is high, which allows images to be displayed in superior quality

The touch control panel has an intuitive design and is easy to clean.

Can be illuminated, so control buttons are easy to identify.

Induction (wireless) battery charging

High capacity 2000mAh lithium battery

Handpiece autonomy: 8 hours

After 3 minutes of inactivity, the handpiece enters Stand-By mode

Integrated Apex locator

Allows root canal length measurement for safer and more effective treatment.

Displays in real time the position of the needle in the canal

Specific functions:

Auto stop on reaching the apical point.

Auto slow down when approaching the apical point.

Auto change of rotation direction when approaching the apical point.

Auto start when inserting the instrument into the canal.

Possibility to set the apical point.

Sound and light warnings during root canal treatment
