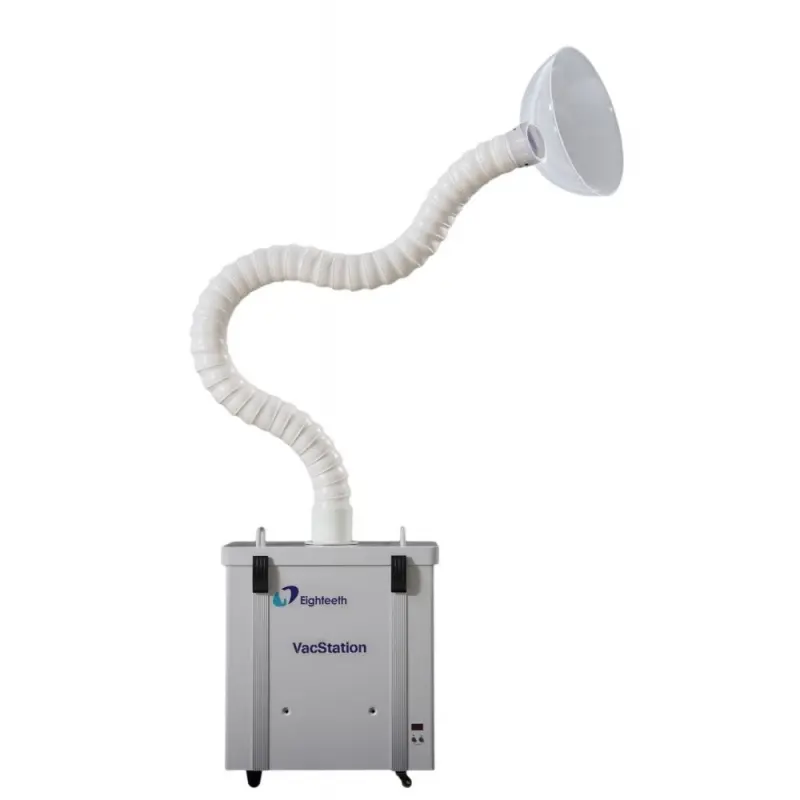

VacStation extra-oral dental suction system

VacStation is an extra-oral dental suction system; its main role is to prevent the spreading of blood and saliva droplets,  airborne dust particles or viruses, and other substances inside your practice, all inherent parts of dental care in the context of working with instruments generating aerosols.

These instruments can either be rotative handpieces (turbines especially), but also, instruments used in prophylaxis such as the ultrasound and airflow descaling device.

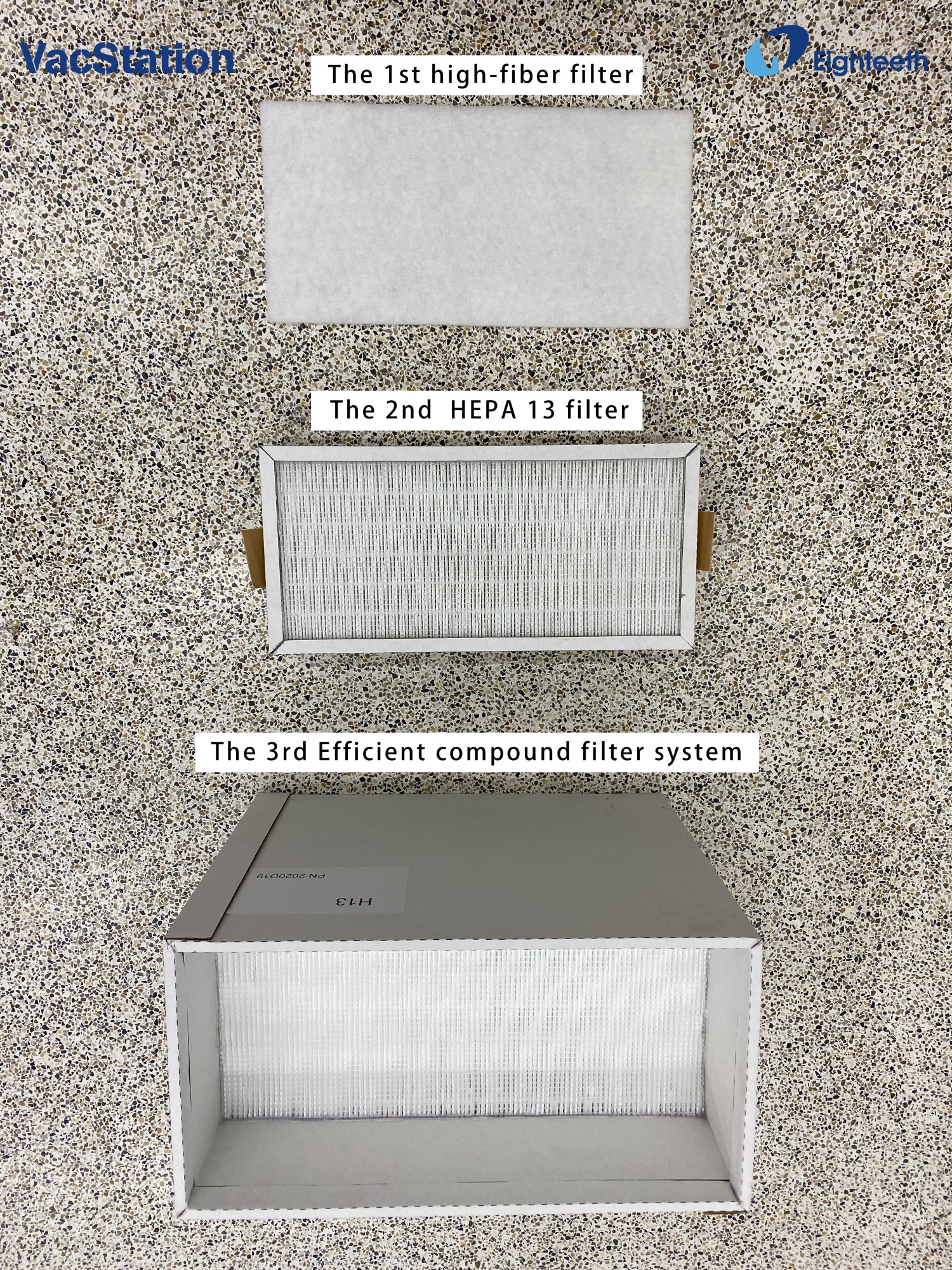

Comprising 3 efficient filtering systems, as well as an UV sanitization system.

- level 1 - a filter with dense cotton fibres, absorbs moist from aerosols

- level 2 - hepa 13 filter - 99.07% MPPS efficiency

- level 3 - composite filter - contains 5 additional filters

Noiseless, it possesses an increased power of aerosol absorption, as a result of the no brushes, long-lasting induction engine.

A FLEXIBLE HANDLE

VacStation possesses a flexible handle which makes the device to be easily positioned according to your own needs. It can be placed in any available space, around the chair, the dentist or the nurese.

The suction cup is adjustable in any direction, so that it can be used in the best position possible.

The hinges don't get loose with time.

No trajectory constrictions, so that the airflow is not blocked or constricted.

Noise is diminished, due to the large diameter of the suction tube.

 DEVICE EMPLACEMENT

Tubing 1.5m - long enough to reach the height of the chair

Easy to place, depending on the patient's height and posture

Position the suction cup at about 15-30cm from the patient's mouth or the aerosol source, for a more effective usage

No other connection is required

TECHNICAL DETAILS

Maximum volume of absorption - 3700l/minute (adjustable in 10 degrees)

Total area of filtering - 1281 cm2

UV Light - 265-285nm, 2260μW/cm2

Induction engine, no brushes

Noise level  - 62db

Weight - 14,2kg

The package contains : main suction unit, flexible directional hose, 2 suction funnels, 5 level 1 additional filters, controller suction volume
