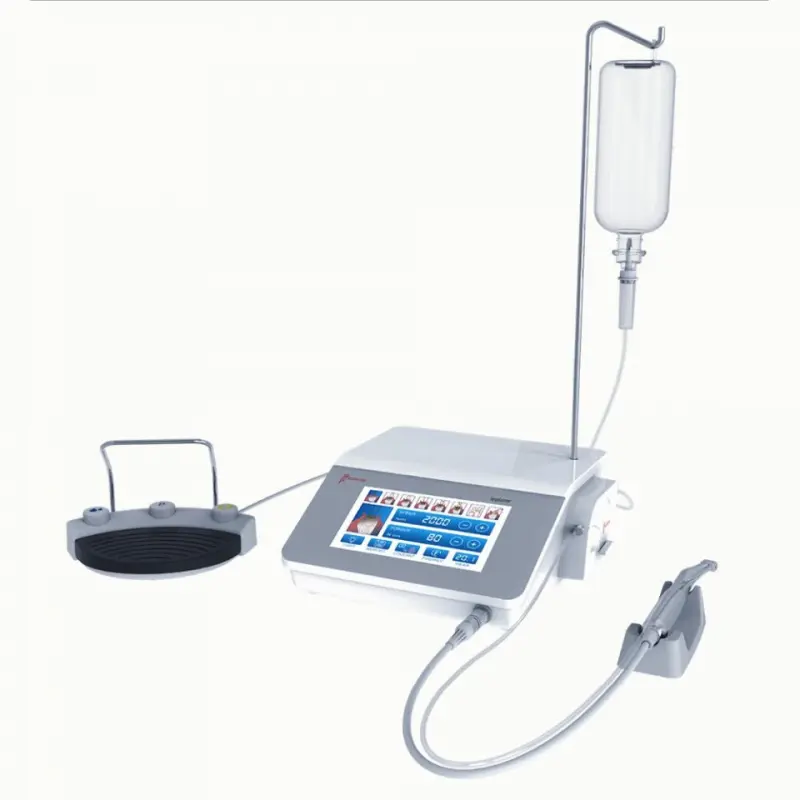

Fiziodispenser Implanter Woodpecker

The product is available by order. Contact us !

Generql characteristics :

Cutting edge technology

Fast post-operative recovery

Heating protection in conditions of constant usage

The temperature is constantly maintained under 38 degrees Celsius, during functioning and operation, with aid from the cooling feature technology

A full monitoring system which ensures safety during procedures

High precision and patient comfort

Excellent performance with low and high speed

Automatic grading / calibration

8 preset programs

Sound based alerts and automatic shut down if the value of the preset couple is exceeded

User friendly interface

Sizeable touch screen

Accurate control of the couple and display in real time - safety during its usage

LED counter-angle pieces, stable, strong, high in precision, assuring and excellent visibility

Control panel allowing speed settings and settings of rotation direction, couple, the gear ratio and cooling flowrate according to the employed surgical procedure

Precision in showcasing techinical parameters

Unit technical details :

Power supply : 220V, 50/60Hz

Input :150VA

Maximum water debit : 110ml/min

Sizes : 276 x 267 x 110mm

Micromotor characteristics :

Induction based micromotor (without brushes)

Enhanced visibility due to LED based technology

Maximal rotation speed : 40.000 rpm

Maximal couple: 80 Ncm

Reduced weight : 140g

Reduced sound intensity: 46.2db

Micromotor + counter-angle piece +tube are autoclavable, thus ensuring a bacteria free environment

Multifunctional pedal controls rotation speed, program selection, cooling debit and rotation direction

Allows much more freedom to your arms

Cable length: 2.8m

Counter angle piece with a reduction of 20:1; enhanced precision, ensures a good stability regardless of how fast one works; perfect balance between the weight of the counter-angle and the engine, thus guaranteeing a better fastening

Presentation :

1 central unit + 1 handpiece holder + 4  non-reusable irrigation tubes+ 1 pedal + 1 hand piece
