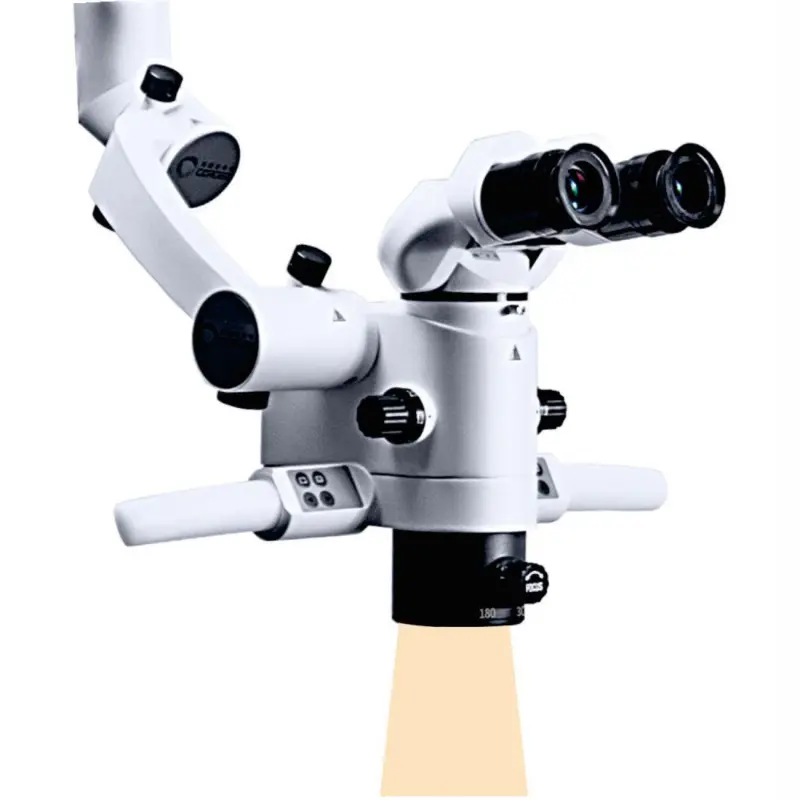

CORDER ASOM-510-6E dental microscope with CCD

Manufactured by CORDER, one of the divisions of the Institute of Optics and Electronics of the Chinese Academy of Sciences, a company with extensive experience in medical optics research.

The ASOM-510 model is manufactured with high-quality components, optics from Germany, LEDs from the USA, and electronics from Japan.

It features a compact design and top-of-the-line features, with a built-in LED light source and 4K video camera. The optics are of superior, military-grade quality, with high resolution and brightness and an extended depth of field. The doctor's comfort is enhanced thanks to the 180-300mm variable focal length lens and 200-degree rotating binoculars.

Binocular:

- 12.5x magnification, adjustable interpupillary distance 55-75mm, diopter adjustment between +6D and -6D

- rotation between 0 and 200 degrees

Magnification factor:

- 5 magnification levels: 3.6x, 5.4x, 9x, 14.4x, and 22.5x

- Field of view: 55.6 mm, 37.1 mm, 22.2 mm, 13.9 mm, 8.9 mm

Lighting:

- LED, cool light, brightness adjustment, light spot diameter 70 mm, intensity over 60,000 lux

- extended service life, up to 100,000 hours

- additional functions: spot, yellow filter, green filter

Variofocus lens

with adjustable focal length F between 180 and 300 mm

Integrated 4K CCD video system

Monitor included

Balanced arm

Microscope stand with rollers

- with locking system in the desired position

Various optional extras available (at extra cost): beam splitter, extender, mobile phone adapter, etc.
